Industrial Quality Report
A production quality control report for manufacturing, with batch details, measurement tables, pass/fail summary, and inspector sign-off.
Template — quality_report.craft
<Document>
<Settings page_size="A4" page_orientation="portrait"
header_ratio="0.08" body_ratio="0.84" footer_ratio="0.08"/>
<Metadata>
<Author>${company_name}</Author>
<Subject>QC Report — Batch ${batch_number}</Subject>
</Metadata>
<Header margin_left="25" margin_right="25" margin_top="8">
<Layout orientation="horizontal">
<Text weight="0.67" font_size="16" style="bold"
color="#1B2631">${company_name}</Text>
<Rectangle weight="0.33" padding="4"
background_color="#1B2631">
<Text font_size="10" style="bold" alignment="center"
color="white">QUALITY CONTROL REPORT</Text>
</Rectangle>
</Layout>
<Line x1="0" y1="0" x2="545" y2="0"
border_color="#1B2631" border_width="1.5"/>
</Header>
<Body margin_left="25" margin_right="25">
<!-- Batch Information -->
<Rectangle background_color="#F2F3F4" padding="10"
border_color="#ABB2B9" border_width="0.5">
<Text font_size="11" style="bold" color="#1B2631">
Batch Information
</Text>
<Layout orientation="horizontal">
<Text weight="0.33" font_size="10">
Batch #: ${batch_number}
</Text>
<Text weight="0.33" font_size="10">
Product: ${product_name}
</Text>
<Text weight="0.34" font_size="10">
Line: ${production_line}
</Text>
</Layout>
<Layout orientation="horizontal">
<Text weight="0.33" font_size="10">
Date: ${production_date}
</Text>
<Text weight="0.33" font_size="10">
Shift: ${shift}
</Text>
<Text weight="0.34" font_size="10">
Sample Size: ${sample_size}
</Text>
</Layout>
</Rectangle>
<Blank/>
<!-- Measurements Table -->
<Text font_size="11" style="bold" color="#1B2631">
Dimensional Measurements
</Text>
<Table model="${measurements}">
<THead>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">
Parameter
</HTitle>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">
Nominal
</HTitle>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">
Tolerance
</HTitle>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">
Measured
</HTitle>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">
Status
</HTitle>
</THead>
</Table>
<Blank/>
<!-- Visual Inspection -->
<Text font_size="11" style="bold" color="#1B2631">
Visual Inspection
</Text>
<Table model="${visual_checks}">
<THead>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">Check</HTitle>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">Result</HTitle>
<HTitle style="bold" font_size="9"
background_color="#1B2631" color="white">Notes</HTitle>
</THead>
</Table>
<Blank/>
<!-- Summary -->
<Layout orientation="horizontal">
<Rectangle weight="0.33" padding="10"
background_color="${result_color}">
<Text font_size="18" style="bold" alignment="center"
color="white">${overall_result}</Text>
</Rectangle>
<Rectangle weight="0.67" padding="10"
background_color="#F2F3F4"
border_color="#ABB2B9" border_width="0.5">
<Layout orientation="vertical">
<Text font_size="10" style="bold" color="#1B2631">Summary</Text>
<Text font_size="10">
Defects found: ${defect_count} / ${sample_size}
</Text>
<Text font_size="10">
Defect rate: ${defect_rate}
</Text>
<Text font_size="10">${summary_notes}</Text>
</Layout>
</Rectangle>
</Layout>
<Blank/>
<Blank/>
<!-- Sign-off -->
<Layout orientation="horizontal">
<Rectangle weight="0.4" padding="5">
<Line x1="0" y1="0" x2="160" y2="0"
border_color="black" border_width="0.5"/>
<Text font_size="9" alignment="center">
${inspector_name}
</Text>
<Text font_size="8" alignment="center" color="#7F8C8D">
Quality Inspector
</Text>
</Rectangle>
<Rectangle weight="0.4" padding="5">
<Line x1="0" y1="0" x2="160" y2="0"
border_color="black" border_width="0.5"/>
<Text font_size="9" alignment="center">
${supervisor_name}
</Text>
<Text font_size="8" alignment="center" color="#7F8C8D">
Production Supervisor
</Text>
</Rectangle>
<Text weight="0.2"/>
</Layout>
</Body>
<Footer margin_left="25" margin_right="25">
<Layout orientation="horizontal">
<Text weight="0.5" font_size="7" color="#95A5A6">
${company_name} — Internal Use Only — QC-${batch_number}
</Text>
<PageNumber weight="0.5" font_size="7"
alignment="right" color="#95A5A6"/>
</Layout>
</Footer>
</Document>
Data — quality_report.json
{
"company_name": "PrecisionParts Industries",
"batch_number": "BP-2025-03-0042",
"product_name": "Aluminum Housing Unit (AHU-200)",
"production_line": "Line C — CNC Mill #7",
"production_date": "2025-03-08",
"shift": "Morning (06:00–14:00)",
"sample_size": "25",
"measurements": [
["Length", "200.00 mm", "± 0.05 mm", "200.02 mm", "PASS"],
["Width", "120.00 mm", "± 0.05 mm", "119.97 mm", "PASS"],
["Height", "45.00 mm", "± 0.10 mm", "45.08 mm", "PASS"],
["Bore Ø", "18.00 mm", "± 0.02 mm", "18.01 mm", "PASS"],
["Surface Ra", "0.80 µm", "≤ 1.60 µm", "0.72 µm", "PASS"],
["Thread M6", "6.00 mm", "ISO 2 class","5.98 mm", "PASS"]
],
"visual_checks": [
["Surface finish", "OK", "No scratches or dents"],
["Burr removal", "OK", "All edges deburred"],
["Marking legible", "OK", "Laser-engraved batch ID visible"],
["Packaging", "OK", "Anti-static wrap applied"]
],
"overall_result": "PASS",
"result_color": "#27AE60",
"defect_count": "0",
"defect_rate": "0.0%",
"summary_notes": "All samples within specification. Batch approved for shipment.",
"inspector_name": "Marco Bianchi",
"supervisor_name": "Elena Rossi"
}
Usage
docraft_tool quality_report.craft output/quality_report.pdf -d quality_report.json

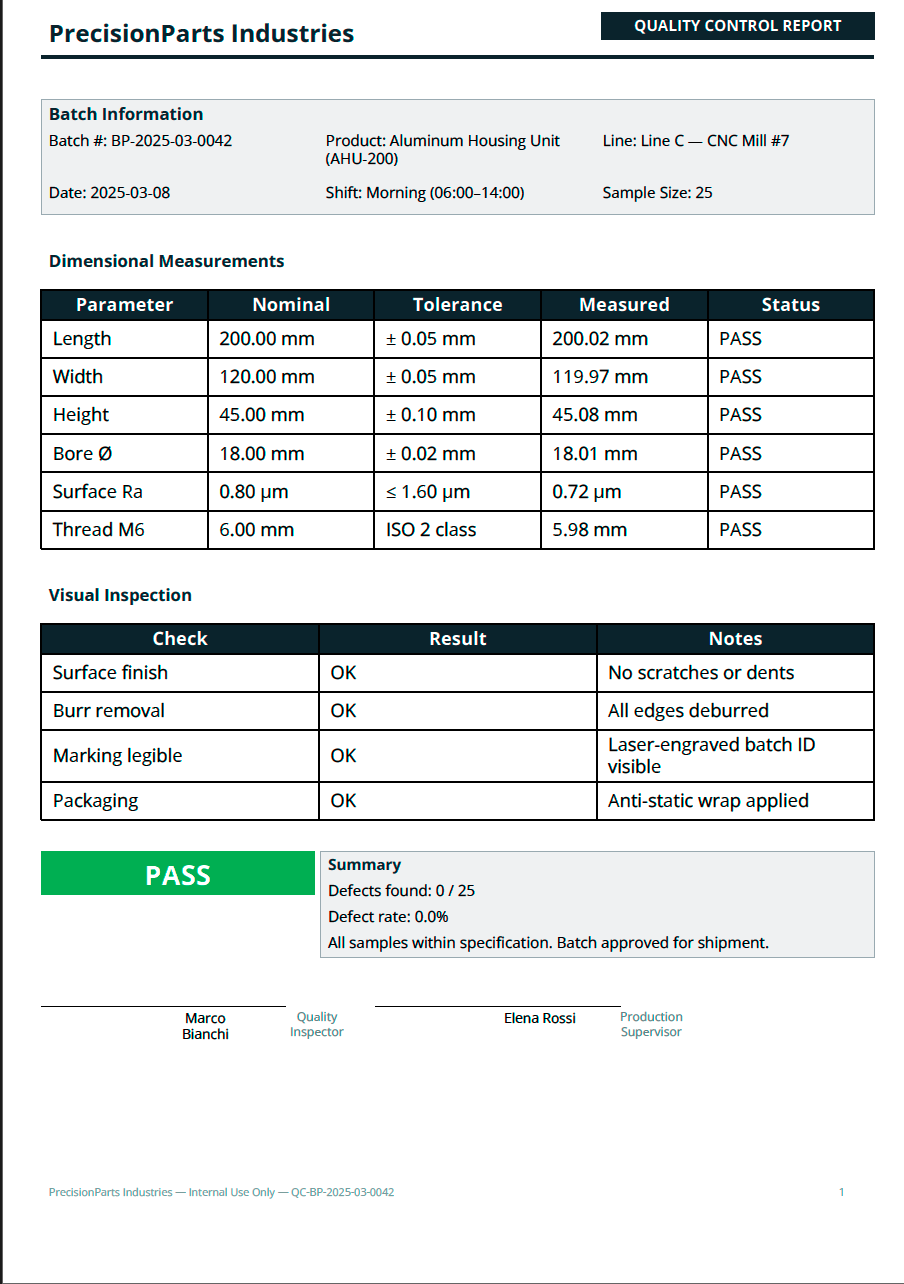

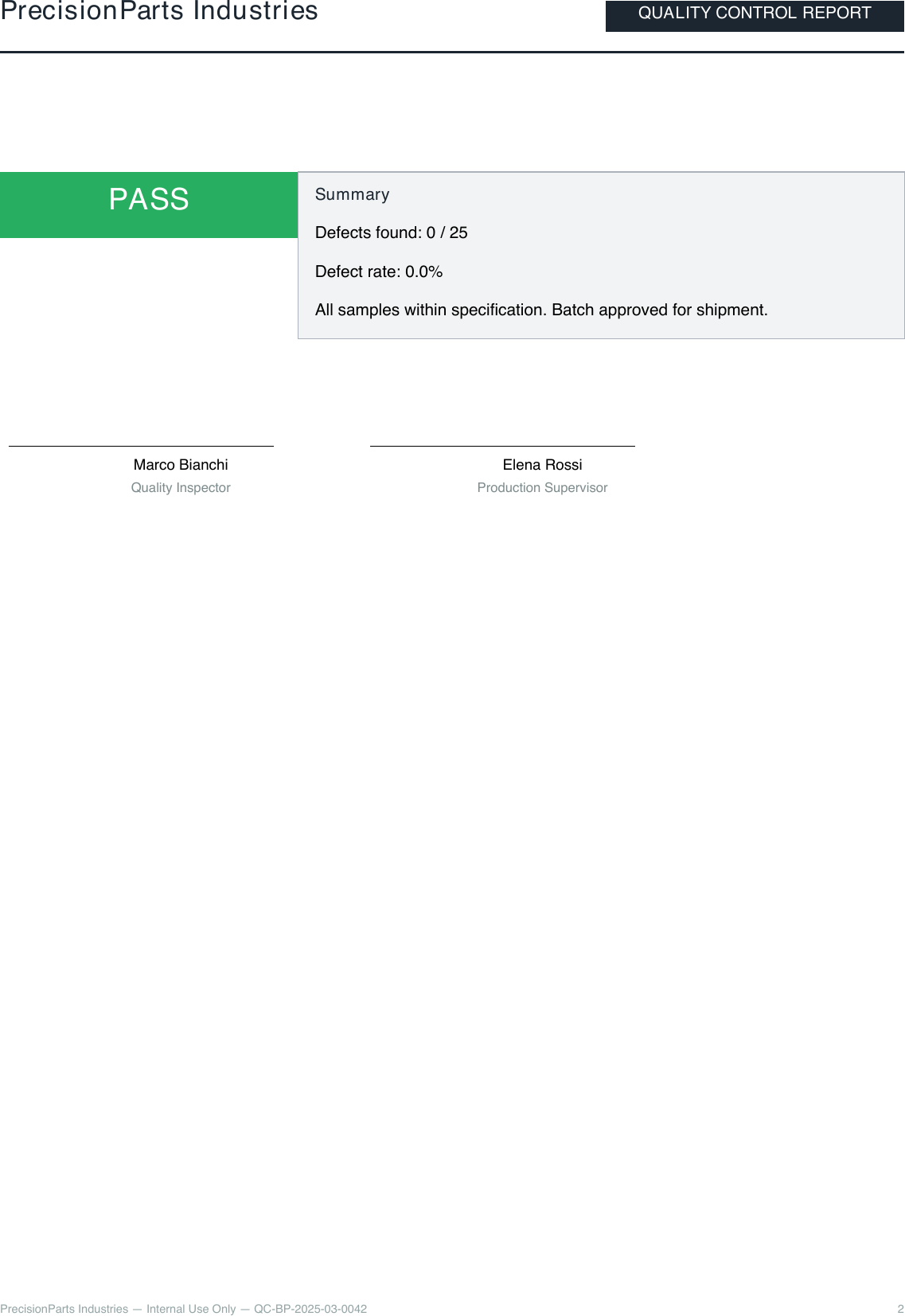

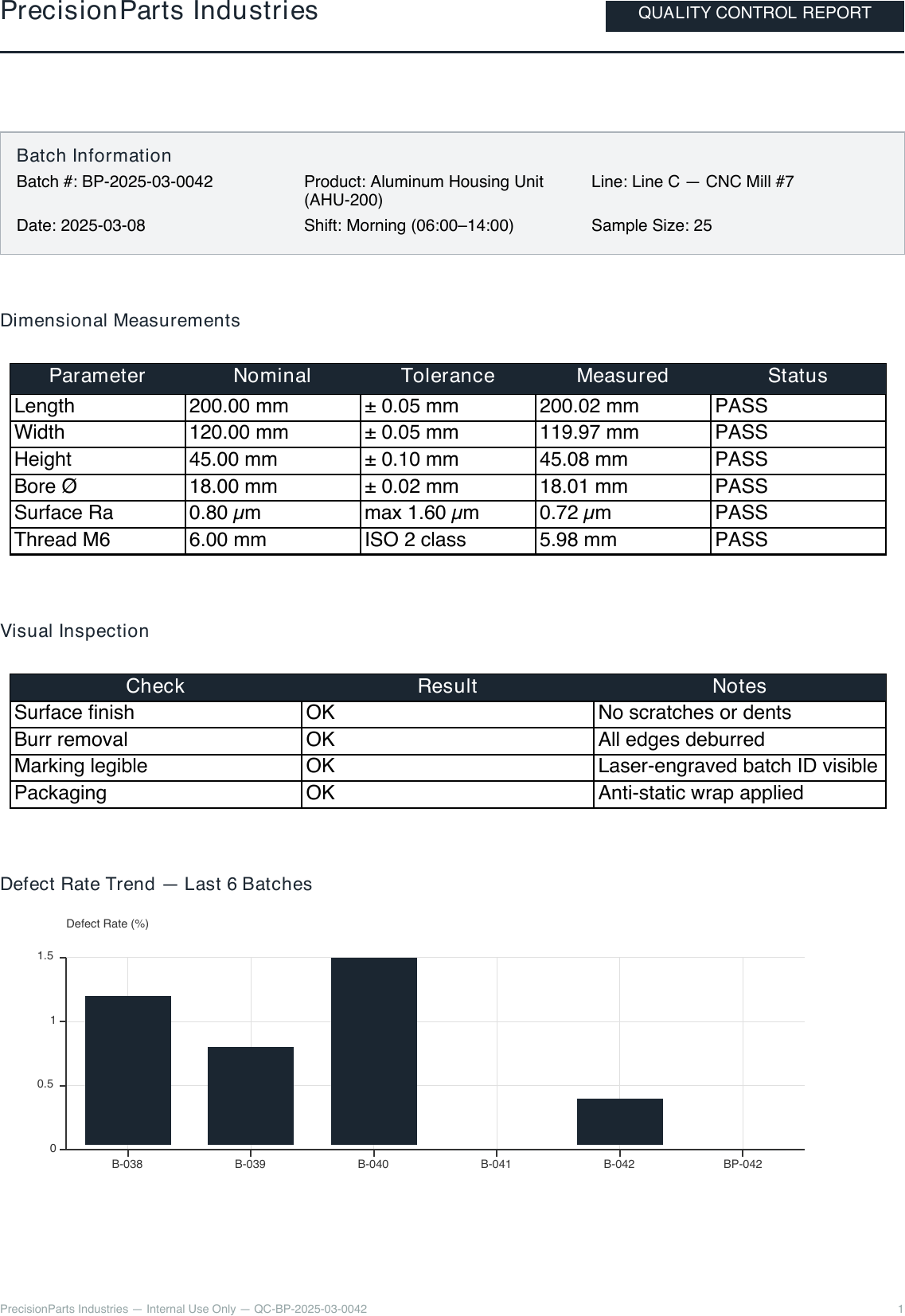

Output Example
